NSDRN2275 20/22°

Plastic Strip
Multi Blow Ballistic NailScrew® Driver

StarburstNSDRN2275Point Locator

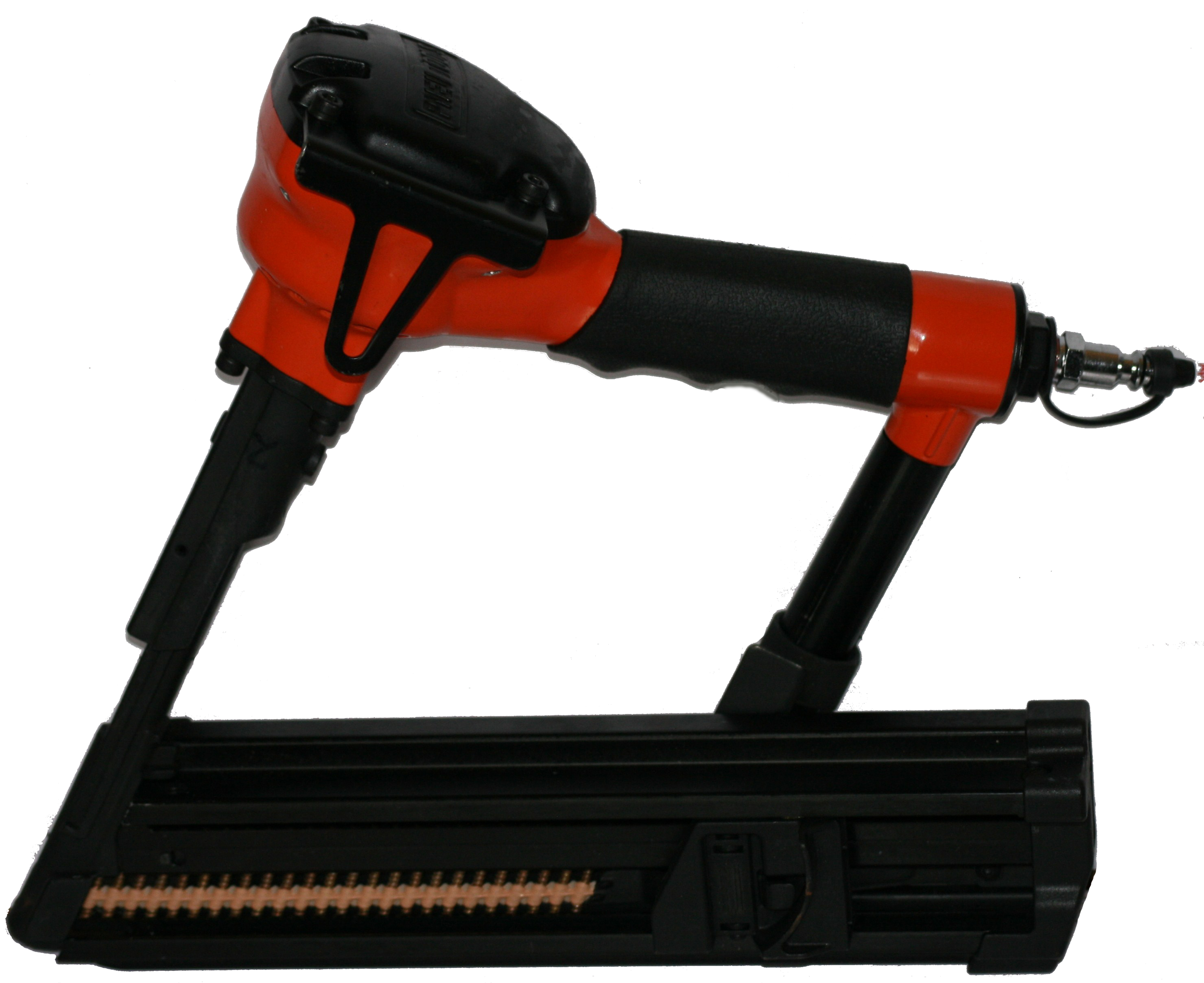

Strip    The NSDRN2275 Ballistic NailScrew® Driver is a 20º/22º plastic collated strip nailer.  Its light weight and smaller size makes it perfect to maneuver and access tight areas.  The NailScrew® point protrudes so it is easy to align.  It has a rear load magazine with load and cock operation.  It includes the case, fitting, wrenches, and oil.
NSDRN2275 Technical Data: Applications:
Capacity: 2 x 30, full round head 20º/21º strips Board Road
Nail Length: 1½" to 3" (38 - 83 mm) Bridge Building
Fastener Diameter: .113" - .148" (2.87 - 3.76 mm) Concrete Forms
Operation Pressure: 70 - 120 PSI (5.0 - 7.5 Bar) Crating/Pallets
Air Inlet: ¼ in. N.P.T. Decking
Dimensions: 12 × 4 × 9" (304.8 × 101.6 × 228.6 mm) Manufactured Housing
Weight: 4.4 lbs. (2.0 kgs) Pole Barns
    Roof Decking
    Subfloor

    See More Ballistic NailScrew® Drivers
